Viptela SD-WAN - CPU & RAM missing

[Cameron76]

Hello,

I would like to ask you for your help with Viptela (Cisco) SD-WAN devices. The system resource graph of CPU and RAM does not work for these devices.

Memory usage graph:

Processor usage graph:

Cisco Viptela basic support

I tried to delete rrd files for both CPU (poller-perf-processors.rrd) and RAM (poller-perf-mempools.rrd) to create new ones, but doesn’t help.

All other things (e.g. interface utilization) seems to working correctly.

Thank you for your hints.

[laf]

<!--
READ THIS FIRST:
Questions about *plugins* such as *Weathermap* should be posted in the Plugins category!!
https://community.librenms.org/c/plugins/15
-->

When asking for help and support, please provide as much information as possible. This should include:

  - Steps to reproduce an issue.
  - The output of `./validate.php`

If it's an issue with the WebUI then please consider including a screenshot and the browser version you are using.

If you are having troubles with discovery/polling include the pastebin output of:

./discovery.php -h HOSTNAME -d | ./pbin.sh
./poller.php -h HOSTNAME -r -f -d | ./pbin.sh

If you need to post any text longer than a few lines, please use a pastebin service such as https://p.libren.ms using non-expiring pastes.

[Cameron76]

LibreNMS Discovery:
https://p.libren.ms/view/df7abed5

LibreNMS Poller:
https://p.libren.ms/view/468e976b

OS: fully updated Oracle Linux 9

[Cameron76]

Hi,

is this enough? Is there anything else to add for troubleshooting?

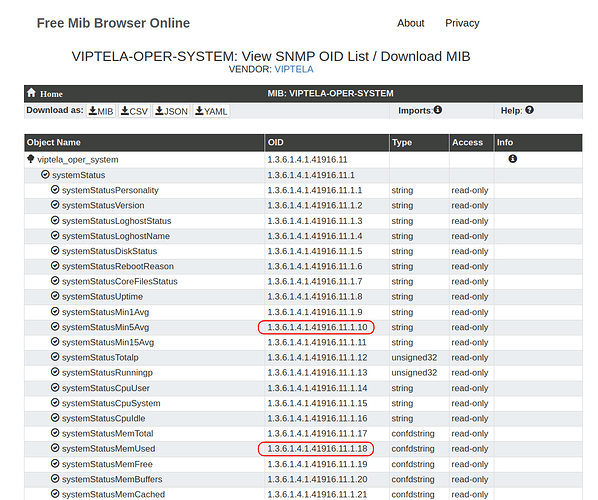

https://mibbrowser.online/mibdb_search.php?mib=VIPTELA-OPER-SYSTEM

CPU:
INFRA [root@librenms-test ~]# snmpwalk -v 3 -l authPriv -u <snmpv3_user> -a SHA1 -x AES -A <auth_password> -X <priv_password> 10.128.78.231 1.3.6.1.4.1.41916.11.1.10
SNMPv2-SMI::enterprises.41916.11.1.10.0 = STRING: “0.56”

RAM:
INFRA [root@librenms-test ~]# snmpwalk -v 3 -l authPriv -u <snmpv3_user> -a SHA1 -x AES -A <auth_password> -X <priv_password> 10.128.78.231 1.3.6.1.4.1.41916.11.1.18
SNMPv2-SMI::enterprises.41916.11.1.18.0 = STRING: “3412832”

Thanks for your info.

[Cameron76]

Hello guys,

Please nobody know?

INFRA [root@librenms-test ~]# cat /opt/librenms/includes/definitions/discovery/viptela.yaml
modules:
os:
serial: .1.3.6.1.4.1.41916.3.1.1.1.5.1.0
version: .1.3.6.1.4.1.41916.11.1.2.0
hardware: .1.3.6.1.4.1.41916.11.1.47.0

INFRA [root@librenms-test ~]# cat /opt/librenms/includes/definitions/viptela.yaml
os: viptela
group: cisco
text: ‘Viptela’
type: network
icon: cisco
over:
- { graph: device_bits, text: ‘Device Traffic’ }
- { graph: device_processor, text: ‘Processor Usage’ }
- { graph: device_mempool, text: ‘Memory Usage’ }
mib_dir: cisco
discovery:
-
sysObjectID:
- .1.3.6.1.4.1.41916.

Isn’t there a problem? Missing OIDs…

Found also this one (just for memory):
https://gist.github.com/neokjames

Thanks a lot for your help.

[laf]

This is community led and people help when they can or when they know.

[Cameron76]

Is there any general procedure or steps (regardless of the Viptela vendor) that I should take to fix the problem and find out the reason why it’s not working?

Is there any documentation for this deeper troubleshooting?

I am proceeding in general, I have discovered an issue, so is there a project leader I can consult with?

[laf]

Mem/CPU Information - LibreNMS Docs

[Cameron76]

Thank you, @laf .

/opt/librenms/includes/definitions/viptela.yaml:

os: viptela
group: cisco
text: 'Viptela'
type: network
icon: cisco
over:
    - { graph: device_bits, text: 'Device Traffic' }
    - { graph: device_processor, text: 'Processor Usage' }
    - { graph: device_mempool, text: 'Memory Usage' }
mib_dir: viptela
discovery:
    -
     	sysObjectID:
            - .1.3.6.1.4.1.41916.

/opt/librenms/includes/definitions/discovery/viptela.yaml:

mib: VIPTELA-OPER-SYSTEM
modules:
    os:
       	serial: .1.3.6.1.4.1.41916.3.1.1.1.5.1.0
        version: .1.3.6.1.4.1.41916.11.1.2.0
        hardware: .1.3.6.1.4.1.41916.11.1.47.0

    processors:
        data:
            -
             	oid: systemStatusCpuIdle
                num_oid: .1.3.6.1.4.1.41916.11.1.16.0

    mempools:
	data:
            -
             	total: .1.3.6.1.4.1.41916.11.1.17.0
                used: .1.3.6.1.4.1.41916.11.1.18.0
                free: .1.3.6.1.4.1.41916.11.1.19.0
                precision: 1024

But I need your help with Processor. At this time, it is not correct, because it is IDLE time of CPU (just for test).

I have totally 3 CPU OIDs as you can see below:

and I can think of two possibilities:

1. reverse the “systemStatusCpuIdle: 1.3.6.1.4.1.41916.11.1.16” - e.g.:100% - CpuIdle_value = CPU utilization
   or
2. sum of two OIDs (systemStatusCpuUser + systemStatusCpuSystem)
   1.3.6.1.4.1.41916.11.1.14 + 1.3.6.1.4.1.41916.11.1.15

I got the same result with both.

What do you think?

It is possible to go the way of simplicity and not create “Custom Processor Discovery and Polling” in file /opt/librenms/LibreNMS/OS/Viptela.php?

I’m afraid that my possibilities end here, I’m not a developer and I won’t be able to handle it.

Thank you.

[laf]

Amazing work Cameron. Well done

So yes, you are right that this now needs custom PHP code.

Take the contents of this (https://p.libren.ms/view/raw/18b49f70) and replace what’s in /opt/librenms/LibreNMS/OS/Viptela.php with it.

If that all works for you please do create a pull request and share back to the community.

[Cameron76]

Thank you @laf .

Everything seems to be working fine.

I will create a pull request and share back to the community.

Thank you again for your cooperation.
