Custom OIDs / Alert Rules

[omega1]

Hello

Hello all,

I have some devices where I have added Custom OID’s. I have managed to get this data into LibreNMS and can see them under “Graphs → Custom OID”. The values are present and correct and all is working well.

I would now like to add some alerts so that if the values of the Custom OID’s go above or below certain values, I get alerts via LibreNMS. For context, the values are temperatures, in C.

I have read various threads on here and am slightly confused about whether or not this is possible and, if it is, how to do this.

I have already tried looking in “Alert Rules” and “Create new alert rule” and I can see a list of customoids.xxx in the list, but not sure if they refer to what I’m looking for or not?

Has anyone been able to set up a simple “alert if custom OID value is great than” alert? IF so, could you kindly point me in the right direction?

Thanks in advance for any suggestions.

[slashdoom]

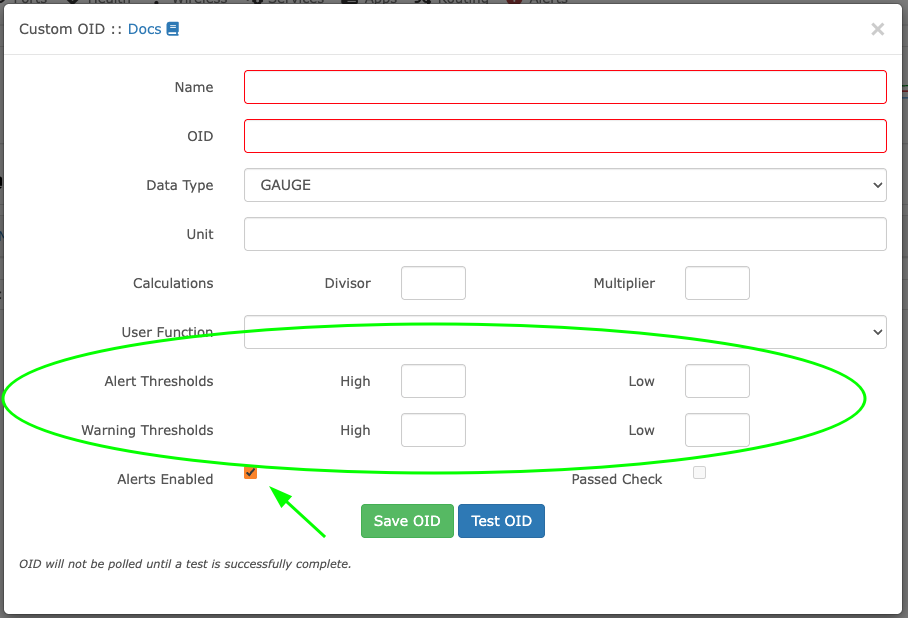

You should be able to. When you setup the customoid there are thresholds for alerts and warning level and a checkbox to enable alerts for that OID.

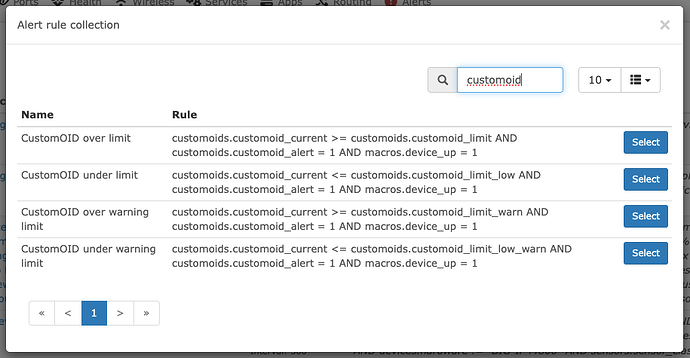

On their own, those don’t do anything, but if you set those then you can just use the customoid alert templates (Alerts > Alert Rules > Create rule from collection).

If you add those they should just alert when they hit the threshold vaules. Alternatively, you could use one of those but instead of the customoid_limit variables just use a static value.

[omega1]

Thank you for your reply, much appreciated. I actually managed to resolve this using your suggested second option, thanks again for taking the time to respond.
