Hi @Kevin_Krumm

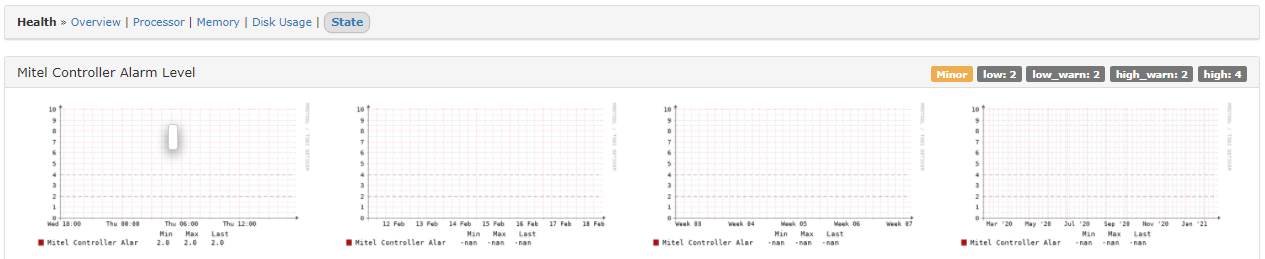

I’ve updated the includes/definitions/discovery/msl.yaml with the following fields and can now see a sensor in the Health Data. Generated an alarm and this reflected in the graph.
mib: MITEL-IperaVoiceLAN-MIB
modules:
sensors:
state:
data:
-
oid: mitelIpera3000Alarms
value: mitelIpera3000AlmLevel
num_oid: ‘.1.3.6.1.4.1.1027.4.1.1.2.2.1.{{ $index }}’
divisor: 1
low_limit: 2
low_warn_limit: 2
warn_limit: 2
high_limit: 4
descr: Mitel Controller Alarm Level
index: mitelIpera3000AlmLevel.{{ $index }}
group: Mitel Alarms
states:
- { value: 1, generic: 0, graph: 0, descr: Clear }
- { value: 2, generic: 1, graph: 0, descr: Minor }
- { value: 3, generic: 1, graph: 0, descr: Major }
- { value: 4, generic: 2, graph: 0, descr: Critical }
Is there also a better way of showing this, like a guage, as there are only 4 possible values?
Is there also a way of pulling down the alarm type data as part of the polling?
The reference I’m using is the mib view here:
MITEL-IperaVoiceLAN-MIB (circitor.fr)
An SNMP Discovery shows the following data, so I’m guessing I need to reference the table to pull all the data, but do not know how to do this properly.
Caching data: sensors
SNMP[‘/usr/bin/snmpbulkwalk’ ‘-v2c’ ‘-c’ ‘COMMUNITY’ ‘-OteQUs’ ‘-Ih’ ‘-m’ ‘MITEL-IperaVoiceLAN-MIB’ ‘-M’ ‘/opt/librenms/mibs:/opt/librenms/mibs/mitel’ ‘-t’ ‘10’ ‘udp:HOSTNAME:161’ ‘mitelIpera3000Alarms’]
mitelIpera3000AlmLevel.0 = 2
mitelIpera3000AlmDetectDate.0 = "07 E5 02 10 15 0C 1D 00 00 00 00 "
mitelIpera3000AlmNbrCategories.0 = 1
mitelIpera3000CatTblIndex.1 = 1
mitelIpera3000CatTblAvailable.1 = 512
mitelIpera3000CatTblUnavailable.1 = 461
mitelIpera3000CatTblLevel.1 = 2
mitelIpera3000CatTblMinorThresh.1 = 89
mitelIpera3000CatTblMajorThresh.1 = 94
mitelIpera3000CatTblCriticalThresh.1 = 98
mitelIpera3000CatTblName.1 = “Mem. Used (Mb)”
mitelIpera3000TrapAlmShutdownCause.0 = 12
mitelIpera3000TrapAlmShutdownDetailedCause.0 = 0
mitelIpera3000AlmResetCause.0 = 2
mitelIpera3000AlmResetCauseBITS.0 = 259
State:
Dynamic Discovery (state):
array (
‘data’ =>
array (
0 =>
array (
‘oid’ => ‘mitelIpera3000Alarms’,
‘value’ => ‘mitelIpera3000AlmLevel’,
‘num_oid’ => ‘.1.3.6.1.4.1.1027.4.1.1.2.2.1.{{ $index }}’,
‘divisor’ => 1,
‘low_limit’ => 2,
‘low_warn_limit’ => 2,
‘warn_limit’ => 2,
‘high_limit’ => 4,
‘descr’ => ‘Mitel Controller Alarm Level’,
‘index’ => ‘mitelIpera3000AlmLevel.{{ $index }}’,
‘group’ => ‘Mitel Alarms’,
‘states’ =>
array (
0 =>
array (
‘value’ => 1,
‘generic’ => 0,
‘graph’ => 0,
‘descr’ => ‘Clear’,
),
1 =>
array (
‘value’ => 2,
‘generic’ => 1,
‘graph’ => 0,
‘descr’ => ‘Minor’,
),
2 =>
array (
‘value’ => 3,
‘generic’ => 1,
‘graph’ => 0,
‘descr’ => ‘Major’,
),
3 =>
array (
‘value’ => 4,
‘generic’ => 2,
‘graph’ => 0,
‘descr’ => ‘Critical’,
),
),
),
),
)
Data mitelIpera3000Alarms:
array (
0 =>
array (
‘mitelIpera3000AlmLevel’ => ‘2’,
‘mitelIpera3000AlmDetectDate’ => ‘07 E5 02 10 15 0C 1D 00 00 00 00’,
‘mitelIpera3000AlmNbrCategories’ => ‘1’,
‘mitelIpera3000TrapAlmShutdownCause’ => ‘12’,
‘mitelIpera3000TrapAlmShutdownDetailedCause’ => ‘0’,
‘mitelIpera3000AlmResetCause’ => ‘2’,
‘mitelIpera3000AlmResetCauseBITS’ => ‘259’,
),
1 =>
array (
‘mitelIpera3000CatTblIndex’ => ‘1’,
‘mitelIpera3000CatTblAvailable’ => ‘512’,
‘mitelIpera3000CatTblUnavailable’ => ‘461’,
‘mitelIpera3000CatTblLevel’ => ‘2’,
‘mitelIpera3000CatTblMinorThresh’ => ‘89’,
‘mitelIpera3000CatTblMajorThresh’ => ‘94’,
‘mitelIpera3000CatTblCriticalThresh’ => ‘98’,
‘mitelIpera3000CatTblName’ => ‘Mem. Used (Mb)’,
),
)
Final sensor value: 2
Cur 2, Low: 2, Low Warn: 2, Warn: 2, High: 4
Thanks for any assistance you can provide.
Kind regards
