HTML Email Transport

Help
1

====================================

Component Version
LibreNMS 1.42.01-21-g32f8a297e
DB Schema 258
PHP 7.0.30-0+deb9u1
MySQL 10.1.26-MariaDB-0+deb9u1
RRDTool 1.6.0
SNMP NET-SNMP 5.7.3
====================================

[OK] Composer Version: 1.7.1
[OK] Dependencies up-to-date.
[OK] Database connection successful
[OK] Database schema correct
[WARN] Your install is over 24 hours out of date, last update: Thu, 09 Aug 2018 21:43:14 +0000
[FIX] Make sure your daily.sh cron is running and run ./daily.sh by hand to see if there are any errors.
(Yes I need to sort this out. Just have to get some paperwork signed off on so I can bypass the proxy for updating)

So I cannot get the Email transport to send an email formatted with HTML.

here is the template

{{ $alert->Title }}
@if ($alert->state == 1) {{ $alert->severity }} @endif @if ($alert->state == 2) Low Toner Acknowledged @endif @if ($alert->state == 3) Low Toner Recovering @endif @if ($alert->state == 0) Toner Replaced @endif

@if ($alert->faults) @foreach ($alert->faults as $key => $value) Device: @if ($alert->transport == mail) @else {{ $alert->hostname }} @endif
Toner: {{ $value['toner_descr'] }}
Toner Level: {{ $value['toner_current'] }}
@if ($alert->location) Location: {{ $alert->location }}
@else Location: LOCATION NOT DEFINED YET!!
@endif Uptime: {{ $alert->uptime_long }}
Duration: {{ $alert->elapsed }}
@if ($alert->description) Description: {{ $alert->description }}
@endif @if ($alert->Features) Features: {{ $alert->features }}
@endif @if ($alert->Purpose) Purpose: {{ $alert->purpose }}
@endif @if ($alert->Notes) Notes: {{ $alert->notes }}
@endif Device: {{ $value['sysDescr'] }}



@endforeach @endif
Alerts sent to: @foreach ($alert->contacts as $key => $value){{ $value }} <{{ $key }}> @endforeach

As you can see I have HTML enabled. Any thoughts ?

Capture
Capture1425×746 26.4 KB

The email comes out looking like (sorry it would only let me post 1 screenshot)

hpe printer Alert for device 192.200.201.17 - Low Toner Severity: warning Timestamp: 2018-08-21 15:35:15 Unique-ID: 1381 Rule: Low Toner Faults: #1: sysObjectID = .1.3.6.1.4.1.1347.41; sysDescr = KYOCERA Document Solutions Printing System; toner_id = 57; toner_oid = .1.3.6.1.2.1.43.11.1.1.9.1.1; toner_descr = TK-174; Alert sent to:

2

@dented your template doesnt contains any html.

Take a look to https://docs.librenms.org/#Alerting/Templates/ at the HTML Templates section.

1 Like
3

Doh. Thank you I was sure it had some in there and has been stripped out in my attempt to get it working.

4
div style="font-family:Helvetica;">
<b>%Title<br>
{if %state == 1}<span style="color:DarkOrchid;">%severity{/if}
{if %state == 2}<span style="color:goldenrod;">Low Toner Acknowledged{/if}
{if %state == 3}<span style="color:DarkKhaki;">Low Toner Recovering{/if}
{if %state == 0}<span style="color:green;">Toner Replaced{/if}
</span></b>
<br><br>
{if %faults}
{foreach %faults}
<b>Device:</b> {if %transport == mail}
<a href="http://librenms/device/device=%hostname/">%hostname</a>
{else}
%hostname
{/if} <br>
<b>Toner:</b> %value.toner_descr<br>
<b>Toner Level:</b> %value.toner_current<br>
{if %location}
<b>Location:</b> %location<br>
{else}
<b>Location:</b> LOCATION NOT DEFINED YET!!<br>
{/if}
<b>Uptime:</b> %uptime_long<br>
<b>Duration:</b> %elapsed<br>
{if %description}
<b>Description:</b> %description<br>
{/if}
{if %Features}
<b>Features:</b> %features<br>
{/if}
{if %Purpose}
<b>Purpose:</b> %purpose<br>
{/if}
{if %Notes}
<b>Notes:</b> %notes<br>
{/if}
<b>Device: </b>%value.sysDescr<br><br>
<img src="http://librenms/graph.php?width=459&height=213&lazy_w=552&from=end-30d&device=%value.device_id&type=device_toner&legend=yes"><br><br>
{/foreach}
{/if}
<br>
<B>Alerts sent to:</b> {foreach %contacts}%value <%key> {/foreach} <br>

There that is what i have. Yes
5

So it is working now?

6

No, still the same issue. The alert is coming out as plain text.

7

Using your template with html enabled works for me. What are you seeing in the mail that comes through?

8

Maybe your email client doesn’t display HTML.
Maybe because of the origin of the mail

9

The thing is I have no issue with any of my other servers. Html emails work fine.

They all use the same mail relay.

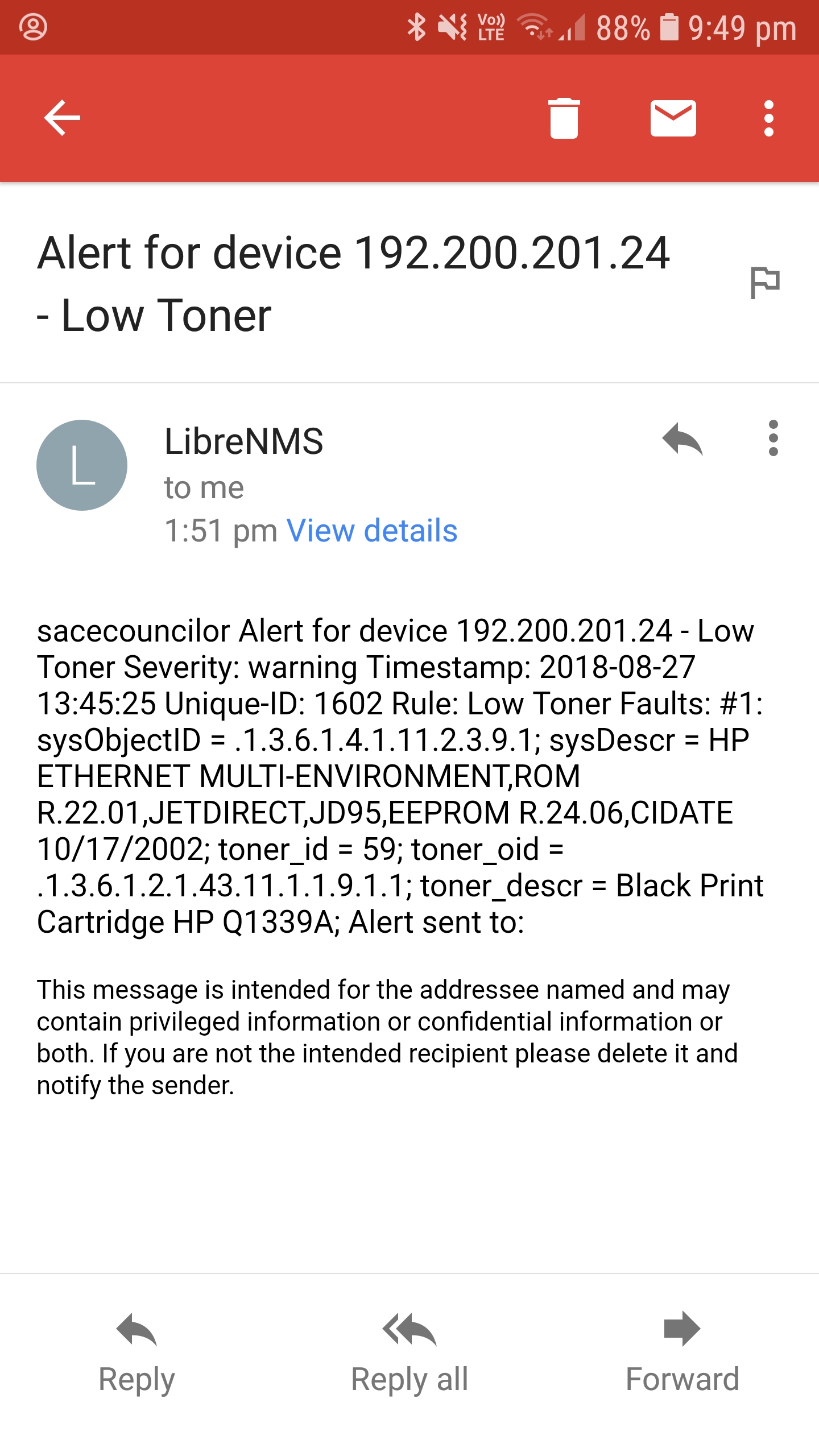

Screenshot_20180827-214923_Gmail|281x500

10

Screenshot_20180827-214923_Gmail
Screenshot_20180827-214923_Gmail1440×2560 537 KB

11

Might be worth converting the template to the new format but I’ve used the one you gave and it worked ok.

12

I also tried that.

<div style="font-family:Helvetica;">
<b>{{ $alert->Title }}<br>
 @if ($alert->state == 1) <span style="color:DarkOrchid;">{{ $alert->severity }} @endif
 @if ($alert->state == 2) <span style="color:goldenrod;">Low Toner Acknowledged @endif
 @if ($alert->state == 3) <span style="color:DarkKhaki;">Low Toner Recovering @endif
 @if ($alert->state == 0) <span style="color:green;">Toner Replaced @endif
</span></b>
<br><br>
 @if ($alert->faults)
 @foreach ($alert->faults as $key => $value)
<b>Device:</b>  @if ($alert->transport == mail)
<a href="http://librenms/device/device={{ $alert->hostname }}/">{{ $alert->hostname }}</a>
 @else
{{ $alert->hostname }}
 @endif  <br>
<b>Toner:</b> {{ $value['toner_descr'] }}<br>
<b>Toner Level:</b> {{ $value['toner_current'] }}<br>
 @if ($alert->location)
<b>Location:</b> {{ $alert->location }}<br>
 @else
<b>Location:</b> LOCATION NOT DEFINED YET!!<br>
 @endif
<b>Uptime:</b> {{ $alert->uptime_long }}<br>
<b>Duration:</b> {{ $alert->elapsed }}<br>
 @if ($alert->description)
<b>Description:</b> {{ $alert->description }}<br>
 @endif
 @if ($alert->Features)
<b>Features:</b> {{ $alert->features }}<br>
 @endif
 @if ($alert->Purpose)
<b>Purpose:</b> {{ $alert->purpose }}<br>
 @endif
 @if ($alert->Notes)
<b>Notes:</b> {{ $alert->notes }}<br>
 @endif
<b>Device: </b>{{ $value['sysDescr'] }}<br><br>
<img src="http://librenms/graph.php?width=459&height=213&lazy_w=552&from=end-30d&device={{ $value['device_id'] }}&type=device_toner&legend=yes"><br><br>
 @endforeach
 @endif
<br>
<b>Alerts sent to:</b>  @foreach ($alert->contacts as $key => $value){{ $value }} <{{ $key }}>  @endforeach
</div>

No go.

I feel like it is something to do with my setup / a config file.

Any suggestions on where to look?

13

All going now. Not sure exactly what was wrong, but thanks for the help.
