Hi guys.
I would like to integrate existing smokeping with lnms with some little prefferences.
Both platforms are already working on same server.
My idea es to:
1 - Create smokeping graphs on lnms for my 10 monitored devices.
and
2 - keep my 50 ping monitored devices on smokeping.
After reading the documentation:
https://docs.librenms.org/Extensions/Smokeping/
There are somethings not covered there for my situation.
This is what I have:
at smokeping config file I have:
*** Targets ***
@include /opt/smokeping/etc/config.d/OTHERS (already existing)
@include /opt/smokeping/etc/config.d/LIBRENMS (generated by /opt/librenms/lnms smokeping:generate --targets > LIBRENMS)
at LIBRENMS I had to remove the “probe” line so I can reuse the previously configured.
Please , let me know if this is ok.
Finally , at the /opt/librenms/config.php , I append:
$config[‘smokeping’][‘dir’] = ‘/opt/smokeping’;
$config[‘smokeping’][‘pings’] = 20;
$config[‘smokeping’][‘probes’] = 2;
$config[‘smokeping’][‘integration’] = true;
$config[‘smokeping’][‘url’] = ‘smokeping/smokeping.cgi’;
/opt/smokeping … is my smokeping base dir (centos7 install).
ok ,
overview -> tools -> smokeping , takes me to smokeping web … this is ok.

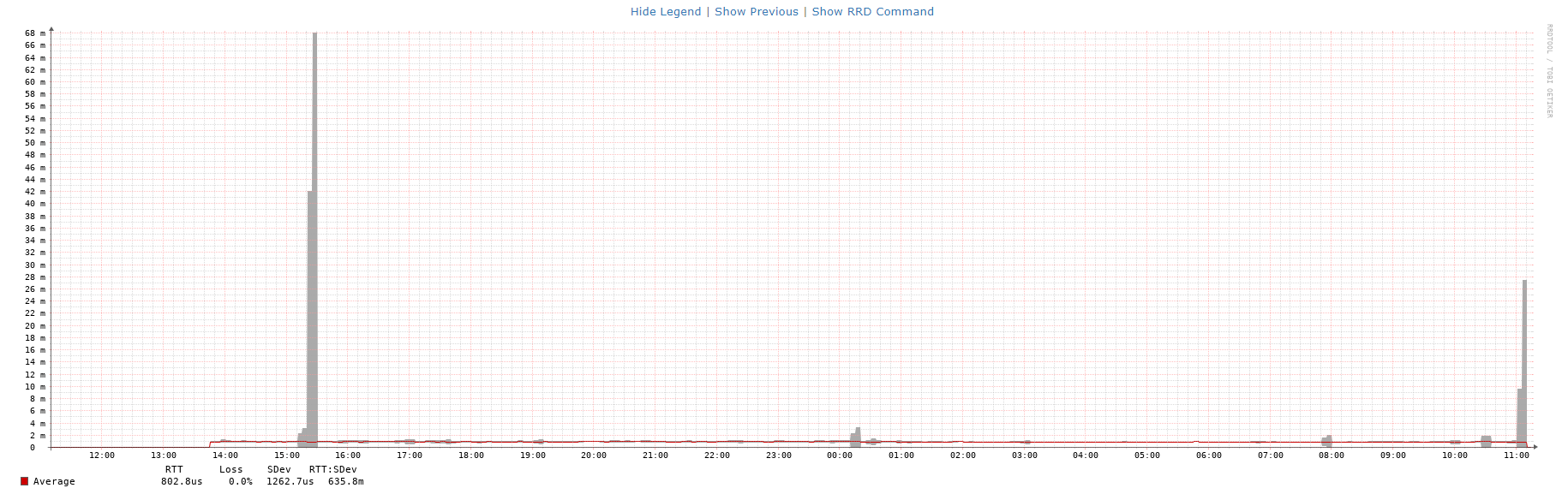

but … where are smokeping graphs on my librenms ?
I can see , smokeping are creating rrd graphs at:
[root@smokeping ~]# ls -altr /opt/smokeping/data/network/
total 8764
drwxr-xr-x. 22 apache apache 4096 Oct 1 13:42 ..
drwxr-xr-x. 2 apache apache 79 Oct 1 13:42 .
-rw-r--r--. 1 apache apache 2986808 Oct 1 14:13 172_22_255_10.rrd
-rw-r--r--. 1 apache apache 2986808 Oct 1 14:13 10_80_25_1.rrd
-rw-r--r--. 1 apache apache 2986808 Oct 1 14:13 172_22_255_250.rrd
Ok … any help on this would be great.
Regads.
Leandro.
