LDAP Authentication - /opt/librenms/LibreNMS/Authentication/LdapAuthorizer.php

maheshmahlawat · 14 December 2023 15:36

Hi Guys,
Please help me in fixing LDAP Auth with my librenms server :-

librenms@SERVER:~$ tail -f /opt/librenms/logs/librenms.log
ldap_get_entries(): Argument #2 ($result) must be of type LDAP\Result, bool given {“exception”:“[object] (TypeError(code: 0): ldap_get_entries(): Argument #2 ($result) must be of type LDAP\Result, bool given at /opt/librenms/LibreNMS/Authentication/LdapAuthorizer.php:160)”}

librenms@SERVER:~$ ./scripts/auth_test.php -u EXT.MAHLAWAT.MAHESH
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
Authentication Method: ldap
ldap_url_parse_ext(ldap://localhost/)
ldap_init: trying /etc/ldap/ldap.conf
ldap_init: using /etc/ldap/ldap.conf
ldap_init: HOME env is /opt/librenms
ldap_init: trying /opt/librenms/ldaprc
ldap_init: trying /opt/librenms/.ldaprc
ldap_init: trying ldaprc
ldap_init: LDAPCONF env is NULL
ldap_init: LDAPRC env is NULL
ldap_create
ldap_url_parse_ext(ldap://10.226.10.5:389)
ldap_sasl_bind_s
ldap_sasl_bind
ldap_send_initial_request
ldap_new_connection 1 1 0
ldap_int_open_connection
ldap_connect_to_host: TCP 10.226.10.5:389
ldap_new_socket: 6
ldap_prepare_socket: 6
ldap_connect_to_host: Trying 10.226.10.5:389
ldap_pvt_connect: fd: 6 tm: 5 async: 0
ldap_ndelay_on: 6
attempting to connect:
connect errno: 115
ldap_int_poll: fd: 6 tm: 5
ldap_is_sock_ready: 6
ldap_ndelay_off: 6
ldap_pvt_connect: 0
ldap_open_defconn: successful
ldap_send_server_request
ldap_result ld 0x55aee915ebc0 msgid 1
wait4msg ld 0x55aee915ebc0 msgid 1 (infinite timeout)
wait4msg continue ld 0x55aee915ebc0 msgid 1 all 1
** ld 0x55aee915ebc0 Connections:

host: 10.226.10.5 port: 389 (default)
from: IP=10.226.11.228:38924
refcnt: 2 status: Connected
last used: Thu Dec 14 16:29:20 2023

** ld 0x55aee915ebc0 Outstanding Requests:

msgid 1, origid 1, status InProgress
outstanding referrals 0, parent count 0
ld 0x55aee915ebc0 request count 1 (abandoned 0)
** ld 0x55aee915ebc0 Response Queue:
Empty
ld 0x55aee915ebc0 response count 0
ldap_chkResponseList ld 0x55aee915ebc0 msgid 1 all 1
ldap_chkResponseList returns ld 0x55aee915ebc0 NULL
ldap_int_select
read1msg: ld 0x55aee915ebc0 msgid 1 all 1
ldap_find_request_by_msgid: msgid 1, lr 0x55aee91621f0 lr->lr_refcnt = 1
read1msg: ld 0x55aee915ebc0 msgid 1 message type bind
read1msg: ld 0x55aee915ebc0 0 new referrals
read1msg: mark request completed, ld 0x55aee915ebc0 msgid 1
request done: ld 0x55aee915ebc0 msgid 1
res_errno: 0, res_error: <>, res_matched: <>
ldap_return_request: lrx 0x55aee91621f0, lr 0x55aee91621f0
ldap_return_request: lrx->lr_msgid 1, lrx->lr_refcnt is now 0, lr is still present
ldap_free_request (origid 1, msgid 1)
ldap_free_request_int: lr 0x55aee91621f0 msgid 1 removed
ldap_do_free_request: asked to free lr 0x55aee91621f0 msgid 1 refcnt 0
ldap_parse_result
ldap_msgfree
ldap_err2string
Bind result: Success
Password:
Authenticate user EXT.MAHLAWAT.MAHESH:
ldap_sasl_bind_s
ldap_sasl_bind
ldap_send_initial_request
ldap_send_server_request
ldap_result ld 0x55aee915ebc0 msgid 2
wait4msg ld 0x55aee915ebc0 msgid 2 (infinite timeout)
wait4msg continue ld 0x55aee915ebc0 msgid 2 all 1
** ld 0x55aee915ebc0 Connections:
host: 10.226.10.5 port: 389 (default)
from: IP=10.226.11.228:38924
refcnt: 2 status: Connected
last used: Thu Dec 14 16:29:29 2023

** ld 0x55aee915ebc0 Outstanding Requests:

msgid 2, origid 2, status InProgress
outstanding referrals 0, parent count 0
ld 0x55aee915ebc0 request count 1 (abandoned 0)
** ld 0x55aee915ebc0 Response Queue:
Empty
ld 0x55aee915ebc0 response count 0
ldap_chkResponseList ld 0x55aee915ebc0 msgid 2 all 1
ldap_chkResponseList returns ld 0x55aee915ebc0 NULL
ldap_int_select
read1msg: ld 0x55aee915ebc0 msgid 2 all 1
ldap_find_request_by_msgid: msgid 2, lr 0x55aee91611b0 lr->lr_refcnt = 1
read1msg: ld 0x55aee915ebc0 msgid 2 message type bind
read1msg: ld 0x55aee915ebc0 0 new referrals
read1msg: mark request completed, ld 0x55aee915ebc0 msgid 2
request done: ld 0x55aee915ebc0 msgid 2
res_errno: 49, res_error: <80090308: LdapErr: DSID-0C090449, comment: AcceptSecurityContext error, data 52e, v3839>, res_matched: <>
ldap_return_request: lrx 0x55aee91611b0, lr 0x55aee91611b0
ldap_return_request: lrx->lr_msgid 2, lrx->lr_refcnt is now 0, lr is still present
ldap_free_request (origid 2, msgid 2)
ldap_free_request_int: lr 0x55aee91611b0 msgid 2 removed
ldap_do_free_request: asked to free lr 0x55aee91611b0 msgid 2 refcnt 0
ldap_parse_result
ldap_msgfree
ldap_err2string
ldap_err2string
Error: LibreNMS\Exceptions\AuthenticationException thrown!
Invalid credentials

librenms@SERVER:~$ ./validate.php
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0

Component	Version
LibreNMS	23.11.0-29-g624eb5aa0 (2023-12-13T23:29:53+01:00)
DB Schema	2023_11_21_172239_increase_vminfo.vmwvmguestos_column_length (274)
PHP	8.1.2-1ubuntu2.14
Python	3.10.12
Database	MariaDB 10.6.12-MariaDB-0ubuntu0.22.04.1
RRDTool	1.7.2
SNMP	5.9.1
===========================================

[OK] Composer Version: 2.6.6
[OK] Dependencies up-to-date.
[OK] Database connection successful
[OK] Database Schema is current
[OK] SQL Server meets minimum requirements
[OK] lower_case_table_names is enabled
[OK] MySQL engine is optimal
[OK] Database and column collations are correct
[OK] Database schema correct
[OK] MySQl and PHP time match
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
[OK] Active pollers found
[OK] Dispatcher Service not detected
[OK] Locks are functional
[OK] Python poller wrapper is polling
[OK] Redis is unavailable
[OK] rrd_dir is writable
[OK] rrdtool version ok
[WARN] Your local git contains modified files, this could prevent automatic updates.
[FIX]:
You can fix this with ./scripts/github-remove
Modified Files:
LibreNMS/Authentication/LdapAuthorizer.php

pjchilds · 14 December 2023 22:48

Looks like creds failed in some way.

Have you got a simple ldap search working on the box with those bind-dn creds to make sure that bit is working?

And you modified LibreNMS/Authentication/LdapAuthorizer.php ? I assume that is where the PHP Warning’s are coming from?

maheshmahlawat · 16 December 2023 18:53

Yes. ldapsearch works fine. I’m able to comb the AD users using my credentials. I’m able to telnet the AD on 389 and 636 both.

maheshmahlawat · 16 December 2023 21:16

I didnt modify LdapAuthorizer.php, just took a backup of the file.
made some edits and rolled back.

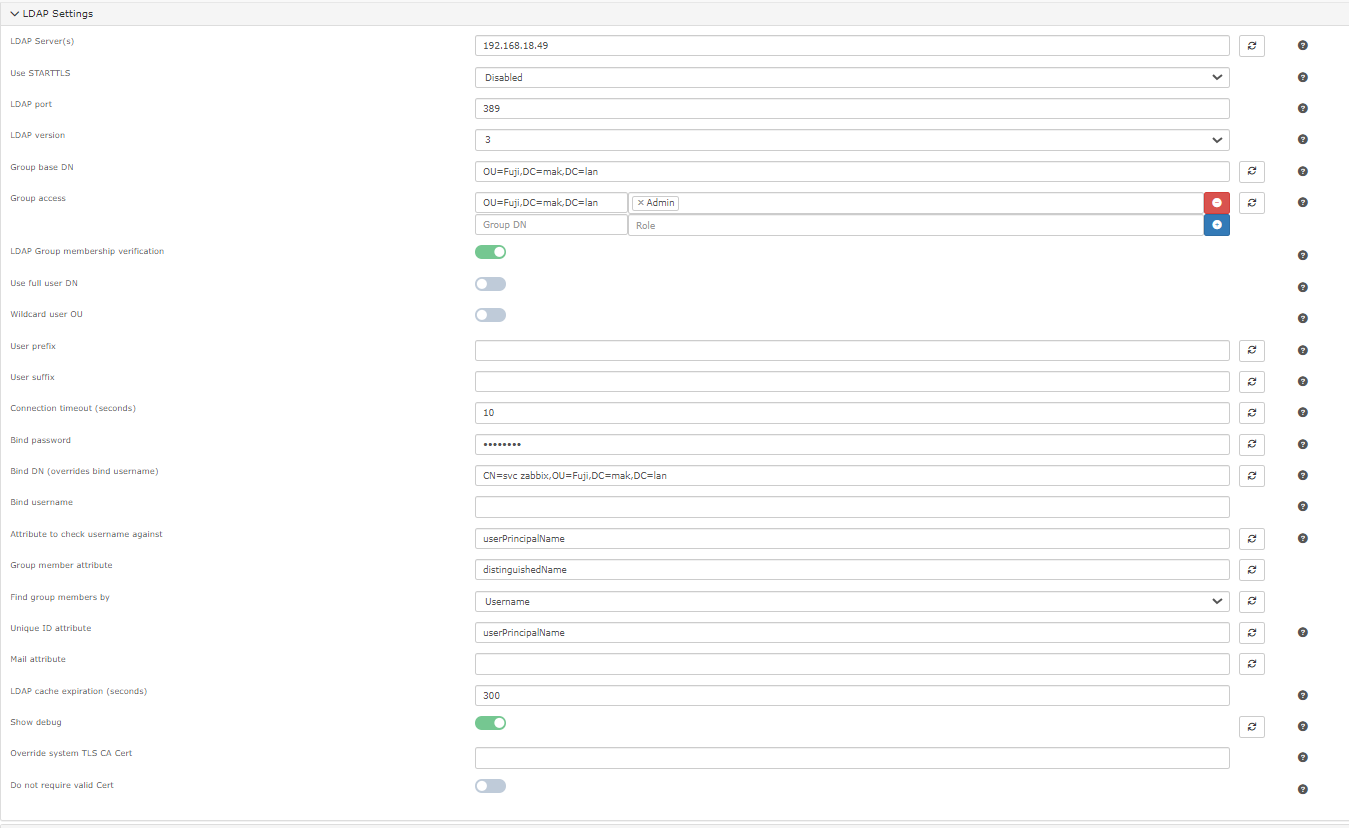

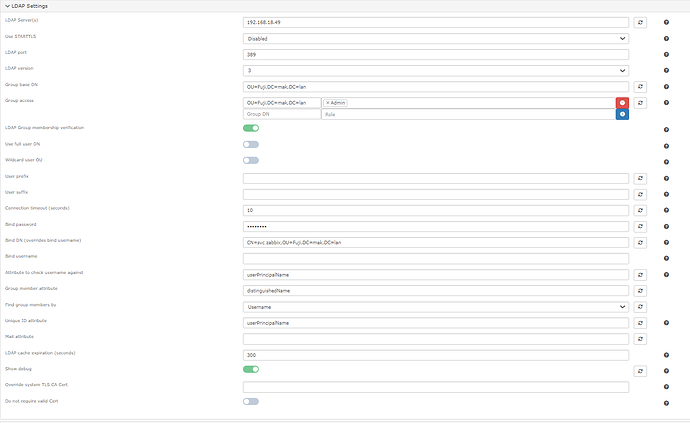

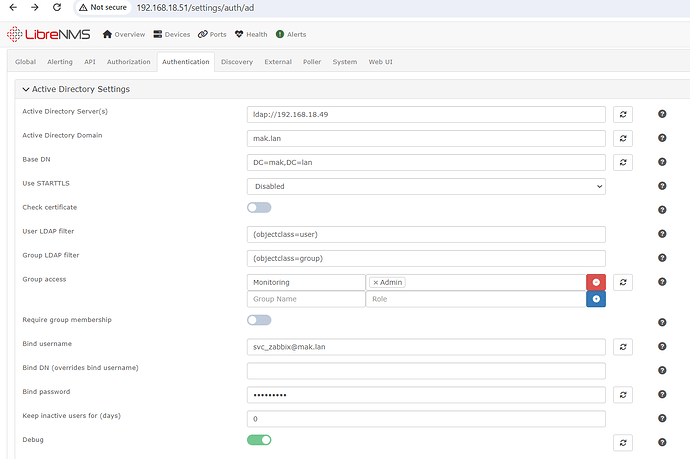

I’m using Windows2016 on AD and configuring using LDAP and not Active Directory, that should work I beleive ?

Trying all perms and combs to fix this. Even setup my own test AD.

Any help would be appreciated.

maheshmahlawat · 16 December 2023 21:38

Some default logs for reference :-

librenms@librenms:~$ ./scripts/auth_test.php -u [email protected]
Authentication Method: ldap
ldap_url_parse_ext(ldap://localhost/)
ldap_init: trying /etc/ldap/ldap.conf
ldap_init: using /etc/ldap/ldap.conf
ldap_init: HOME env is /opt/librenms
ldap_init: trying /opt/librenms/ldaprc

ldap_free_request_int: lr 0x55dd5cd7cd30 msgid 5 removed
ldap_do_free_request: asked to free lr 0x55dd5cd7cd30 msgid 5 refcnt 0
ldap_parse_result
ldap_msgfree
ldap_err2string
Anonymous bind result: Success
AUTH SUCCESS

ldap_search_ext
put_filter: “([email protected])”
put_filter: simple
put_simple_filter: “[email protected]”
ldap_err2string

In LdapAuthorizer.php line 160:

ldap_get_entries(): Argument #2 ($result) must be of type LDAP\Result, bool given

===========================
librenms.logs
#2 ($result) must be of type LDAP\Result, bool given at /opt/librenms/LibreNMS/Authentication/LdapAuthorizer.php:160)"}

===========================
librenms@librenms:~# ldapsearch -b DC=mak,DC=lan -H ldap://192.168.18.49:389 -D [email protected] -W

extended LDIF

LDAPv3

base <DC=mak,DC=lan> with scope subtree

filter: (objectclass=*)

requesting: ALL

mak.lan

mahesh mahlawat, Fuji, mak.lan

dn: CN=mahesh mahlawat,OU=Fuji,DC=mak,DC=lan
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
cn: mahesh mahlawat
sn: mahlawat
givenName: mahesh
distinguishedName: CN=mahesh mahlawat,OU=Fuji,DC=mak,DC=lan
instanceType: 4
whenCreated: 20231216093657.0Z
whenChanged: 20231216212134.0Z
displayName: mahesh mahlawat
uSNCreated: 12774
memberOf: CN=Monitoring,OU=Fuji,DC=mak,DC=lan
uSNChanged: 20529
name: mahesh mahlawat
objectGUID:: T0bIrbIvqUmZr3ngQ93zMQ==
userAccountControl: 66048
badPwdCount: 0
codePage: 0
countryCode: 0
badPasswordTime: 133472352603030458
lastLogoff: 0
lastLogon: 133472352948658638
pwdLastSet: 133472301994805998
primaryGroupID: 513
objectSid:: AQUAAAAAAAUVAAAAY56J2lshNbvgDRx8UAQAAA==
accountExpires: 9223372036854775807
logonCount: 0
sAMAccountName: mmahlawat
sAMAccountType: 805306368
userPrincipalName: [email protected]
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=mak,DC=lan
dSCorePropagationData: 16010101000000.0Z
lastLogonTimestamp: 133472352948658638

svc zabbix, Fuji, mak.lan

dn: CN=svc zabbix,OU=Fuji,DC=mak,DC=lan
objectClass: top
objectClass: person
objectClass: organizationalPerson
objectClass: user
cn: svc zabbix
sn: zabbix
givenName: svc
distinguishedName: CN=svc zabbix,OU=Fuji,DC=mak,DC=lan
instanceType: 4
whenCreated: 20231216093843.0Z
whenChanged: 20231216195703.0Z
displayName: svc zabbix
uSNCreated: 12788
memberOf: CN=Monitoring,OU=Fuji,DC=mak,DC=lan
uSNChanged: 20518
name: svc zabbix
objectGUID:: iX0iOJ05FUmDOdiXe3J8Fg==
userAccountControl: 66048
badPwdCount: 3
codePage: 0
countryCode: 0
badPasswordTime: 133472348353956765
lastLogoff: 0
lastLogon: 0
pwdLastSet: 133472302230882046
primaryGroupID: 513
objectSid:: AQUAAAAAAAUVAAAAY56J2lshNbvgDRx8UgQAAA==
accountExpires: 9223372036854775807
logonCount: 0
sAMAccountName: svc_zabbix
sAMAccountType: 805306368
userPrincipalName: [email protected]
objectCategory: CN=Person,CN=Schema,CN=Configuration,DC=mak,DC=lan
dSCorePropagationData: 16010101000000.0Z

search reference

ref: ldap://ForestDnsZones.mak.lan/DC=ForestDnsZones,DC=mak,DC=lan

search reference

ref: ldap://DomainDnsZones.mak.lan/DC=DomainDnsZones,DC=mak,DC=lan

search reference

ref: ldap://mak.lan/CN=Configuration,DC=mak,DC=lan

search result

search: 2
result: 0 Success

numResponses: 251

numEntries: 247

numReferences: 3

pjchilds · 18 December 2023 00:59

github.com

librenms/librenms/blob/master/LibreNMS/Authentication/LdapAuthorizer.php#L160



              return false;
          }

          public function getUserid($username)
          {
              try {
                  $connection = $this->getLdapConnection();

                  $filter = '(' . Config::get('auth_ldap_prefix') . $username . ')';
                  $search = ldap_search($connection, trim(Config::get('auth_ldap_suffix'), ','), $filter);
                  $entries = ldap_get_entries($connection, $search);

                  if ($entries['count']) {
                      $uid_attr = strtolower(Config::get('auth_ldap_uid_attribute', 'uidnumber'));

                      return $entries[0][$uid_attr][0];
                  }
              } catch (AuthenticationException $e) {
                  echo $e->getMessage() . PHP_EOL;
              }

so looking at that the ‘search’ is failing to return a result - it is probably returning ‘false’

            $filter = '(' . Config::get('auth_ldap_prefix') . $username . ')';
            $search = ldap_search($connection, trim(Config::get('auth_ldap_suffix'), ','), $filter);

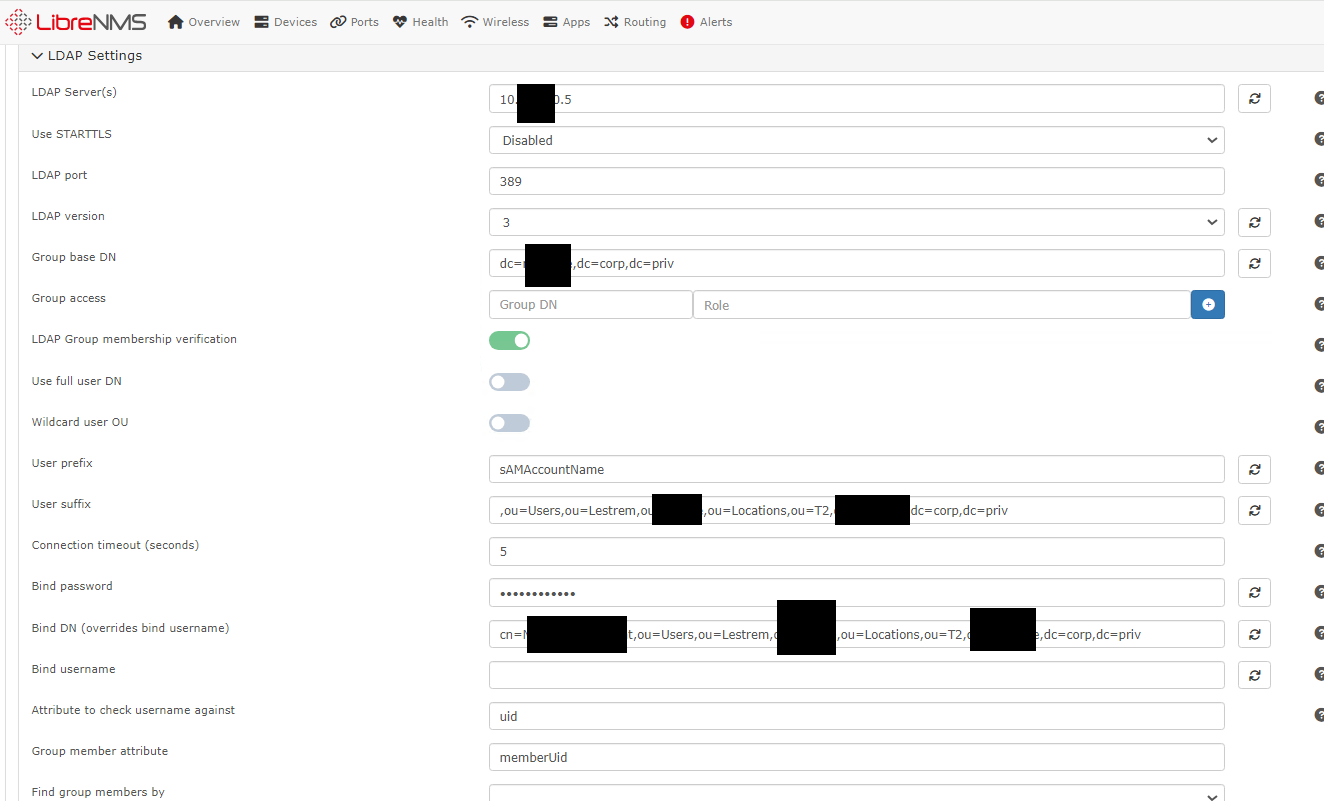

User prefix in the UI = auth_ldap_prefix
User suffix in the UI = auth_ldap_suffix

I’m not knowledgable on this but I think if you are trying to use [email protected] as your ‘userid’ you would need something like user-prefix as userPrincipalName= ?

And suffix as something like ,OU=Fuji,DC=mak,DC=lan or ,DC=mak,DC=lan ??
And you should be able to use ldap_search command line to verify that would work …

Or perhaps if you want people to use mmahlawat as the login then perhaps user-prefix as sAMAccountName= etc …

Also this function getUserid($username) is trying to get the userid which defaults to ‘uidnumber’ so I think it is looking for some type of numerical unique value such as ‘uid’ in unix … so perhaps
Unique ID attribute (auth_ldap_uid_attribute) should be some numberic attribute ? (to be honest I’m not sure if it has to be numeric … )

maheshmahlawat · 19 December 2023 14:02

Ok this setting just works fine for me.

But I want to use userPrincipalName attribute to login, but it seems to be using sAMAccountName i.e username only.

Researching more now.

LDAP Authentication - /opt/librenms/LibreNMS/Authentication/LdapAuthorizer.php

librenms@SERVER:~$ ./validate.php PHP Warning: Module “ldap” is already loaded in Unknown on line 0 PHP Warning: Module “ldap” is already loaded in Unknown on line 0 PHP Warning: Module “ldap” is already loaded in Unknown on line 0

extended LDIF

LDAPv3

base <DC=mak,DC=lan> with scope subtree

filter: (objectclass=*)

requesting: ALL

mak.lan

mahesh mahlawat, Fuji, mak.lan

svc zabbix, Fuji, mak.lan

search reference

search reference

search reference

search result

numResponses: 251

numEntries: 247

numReferences: 3

librenms@SERVER:~$ ./validate.php
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
PHP Warning: Module “ldap” is already loaded in Unknown on line 0
