Network Map not shown on Menu Item

Help
1

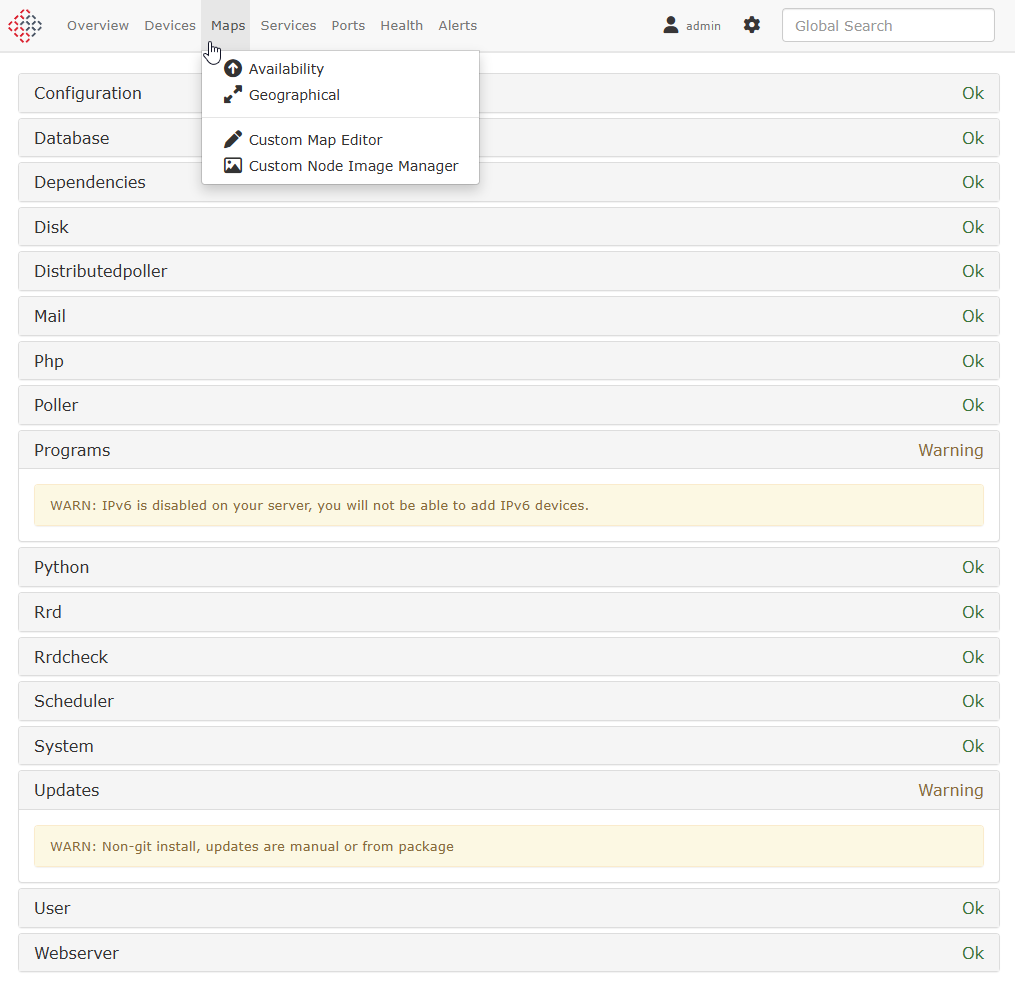

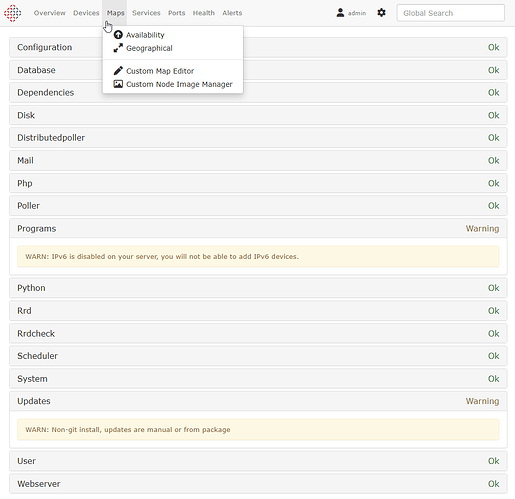

I install the LibreNMS with docker on my synology NAS, everything fine except the Network Map is not shown on the menu items:

No_NetworkMap
No_NetworkMap1015×985 28.7 KB

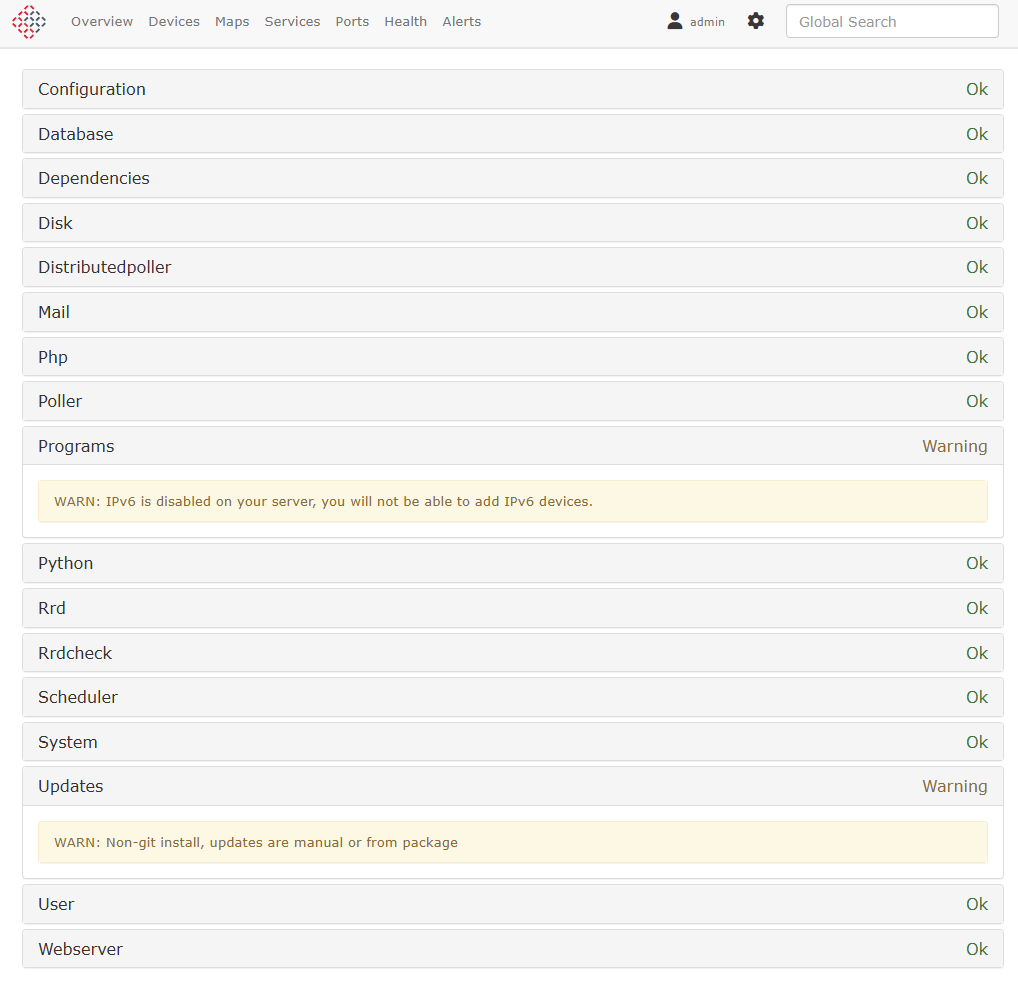

here is the validate config screen shot:

validate
validate1018×984 22.4 KB

any hints is welcome. Thanks a lot.

2

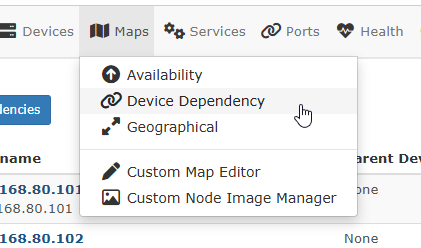

It depends on what Network map you want, the one called Network in the menu:

image756×496 34.6 KB

Is built from xDP info in the links table, if you don’ have those modules switched and data collected then the link isn’t shown.

3

Thanks for reply.
As I checking on the global setting the autodiscovery.xdp is already set as true:

xDP_Setting
xDP_Setting1004×519 36.1 KB

and the network_map_items is set as both xdp and mac:

xDP_mapitem

The network isn’t shown anymore. However, the Device Dependency will be shown after I set the Devices/Device Dependencies.

LB_Dependency
LB_Dependency421×248 11.2 KB

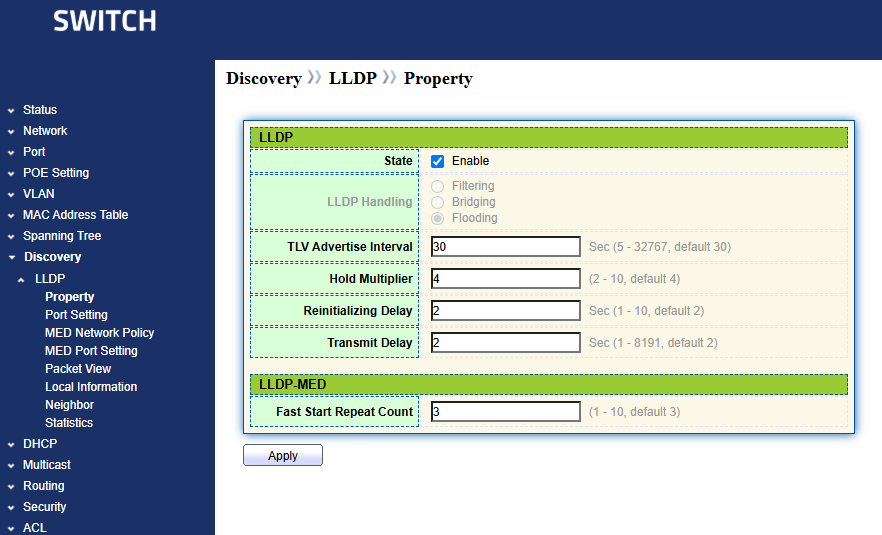

I also check my switch LLDP setting:

SW_LLDPSetting
SW_LLDPSetting882×535 31.5 KB

Thanks again if there are more hints for my trouble shooting. This issue already bothered me several days.

4

Could be 502 errors. Check your browser’s web dev log. Also check the discovery debug output.
