Please provide ALL info asked for here.
./discovery.php -h 172.20.20.42 -d | ./pbin.sh
lnms device:poll172.20.20.42 -vv | ./pbin.sh
snmpbulkwalk -OUneb -v2c -c COMMUNITY 172.20.20.42 . | ./pbin.sh

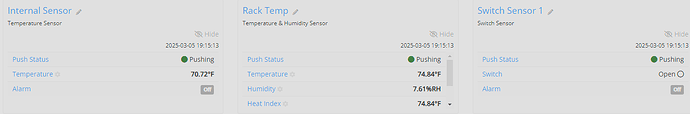

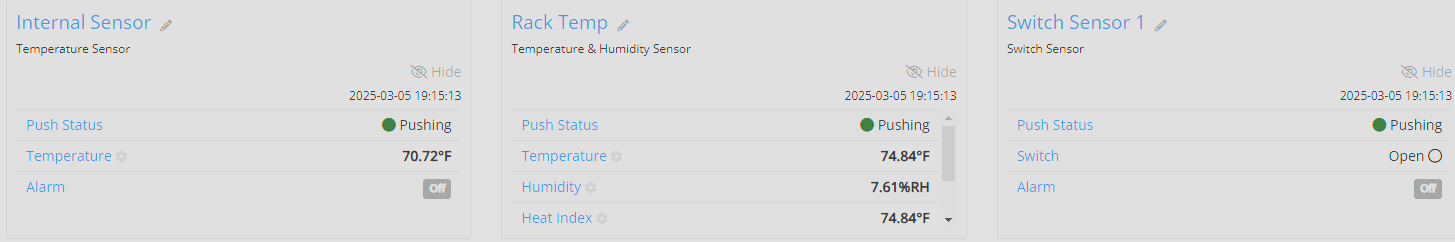

The device is an AVTech RoomAlert-3S. I see a few other AVTech devices, however this one is not included. I have included the MIB below.
–
–defines ROOMALERT3S-MIB for SNMP agent extension of Room Alert 3S
–Contents: Global Registration Module
– Room Alert OIDs - Enterprise 20916
–Version: 1.3.1
–Developed By: AVTECH Software, Inc.
–
–Copyright (c) 2021 AVTECH Software, Inc.
ROOMALERT3S-MIB DEFINITIONS ::= BEGIN
IMPORTS
enterprises, IpAddress, Gauge, TimeTicks FROM RFC1155-SMI
DisplayString, system FROM RFC1213-MIB
NOTIFICATION-TYPE FROM SNMPv2-SMI;
avtech OBJECT IDENTIFIER ::= { enterprises 20916 }
products OBJECT IDENTIFIER ::= { avtech 1 }
roomalert3S OBJECT IDENTIFIER ::= { products 13 }
sensors OBJECT IDENTIFIER ::= { roomalert3S 1 }
internal OBJECT IDENTIFIER ::= { sensors 1 }
digital OBJECT IDENTIFIER ::= { sensors 2 }
switch OBJECT IDENTIFIER ::= { sensors 3 }
labels OBJECT IDENTIFIER ::= { sensors 4 }
temperature OBJECT IDENTIFIER ::= { internal 1 }
digital-sen1 OBJECT IDENTIFIER ::= { digital 1 }
traps OBJECT IDENTIFIER ::= { roomalert3S 2 }
externalrelays OBJECT IDENTIFIER ::= { roomalert3S 3 }
externalrelay1 OBJECT IDENTIFIER ::= { externalrelays 1 }
int-labels OBJECT IDENTIFIER ::= { labels 1 }
digital-labels OBJECT IDENTIFIER ::= { labels 2 }
switch-labels OBJECT IDENTIFIER ::= { labels 3 }
external-relay-labels OBJECT IDENTIFIER ::= { labels 6 }
– Room Alert 3S MIB
– Parameters
internal-tempf OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “The internal temperature reading in Fahrenheit.”
::= { temperature 1 }
internal-tempc OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “The internal temperature reading in Celsius.”
::= { temperature 2 }
digital-sen1-1 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “The sensor’s current temperature in Celsius.”
::= { digital-sen1 1 }
digital-sen1-2 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “The sensor’s current temperature in Fahrenheit.”
::= { digital-sen1 2 }
digital-sen1-3 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “Varies by sensor type: current % relative humidity, voltage reading (V), power state (1=Power Detected, 0=No Power Detected), thermocouple temperature (C), air speed (m/s), or PM2.5 (mcg/m3).”
::= { digital-sen1 3 }
digital-sen1-4 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “Varies by sensor type: current heat index (F), custom analog reading, thermocouple temperature (F), air speed (f/m), or PM10 (mcg/m3).”
::= { digital-sen1 4 }
digital-sen1-5 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “Varies by sensor type: current heat index (C), thermocouple fault code (0=No Fault), air flow (CMH), or particulate fault code (0=No Fault).”
::= { digital-sen1 5 }
digital-sen1-6 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “Varies by sensor type: current dew point (C) or air flow (CFM).”
::= { digital-sen1 6 }
digital-sen1-7 OBJECT-TYPE
SYNTAX INTEGER(0…65535)
ACCESS read-only
STATUS mandatory
DESCRIPTION “Varies by sensor type: current dew point (F).”
::= { digital-sen1 7 }
digital-sen1-8 OBJECT-TYPE
SYNTAX OCTET STRING
ACCESS read-only
STATUS mandatory
DESCRIPTION “The computed analog units for the Room Alert 32S analog input…”
::= { digital-sen1 8 }
switch-sen1 OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-only
STATUS mandatory
DESCRIPTION “The reading for switch sensor 1 (0 = OPEN, 1 = CLOSED).”
::= { switch 1 }
alarmmessage NOTIFICATION-TYPE
ObjectsPart { alarmmessage }
STATUS current
DESCRIPTION “Indicates that an alarm condition has occurred on the sensor indicated by the alarmMessage variable.”
::= { traps 1 }
– externalrelay1
externalrelay1-element-one OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the first element on external relay 1.”
::= { externalrelay1 1 }
externalrelay1-element-two OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the second element on external relay 1.”
::= { externalrelay1 2 }
externalrelay1-element-three OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the third element on external relay 1.”
::= { externalrelay1 3 }
externalrelay1-element-four OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the fourth element on external relay 1.”
::= { externalrelay1 4 }
externalrelay1-element-five OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the fifth element on external relay 1.”
::= { externalrelay1 5 }
externalrelay1-element-six OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the sixth element on external relay 1.”
::= { externalrelay1 6 }
externalrelay1-element-seven OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the seventh element on external relay 1.”
::= { externalrelay1 7 }
externalrelay1-element-eight OBJECT-TYPE
SYNTAX INTEGER(0…1)
ACCESS read-write
STATUS mandatory
DESCRIPTION “The status of the eighth element on external relay 1”
::= { externalrelay1 8 }
– labels
labels-digital-sen1 OBJECT-TYPE
SYNTAX OCTET STRING
ACCESS read-only
STATUS mandatory
DESCRIPTION “Digital Sensor Port 1 Label”
::= { digital-labels 1 }
labels-switch-sen1 OBJECT-TYPE
SYNTAX OCTET STRING
ACCESS read-only
STATUS mandatory
DESCRIPTION “Switch 1 Label”
::= { switch-labels 1 }
labels-internal-sen1 OBJECT-TYPE
SYNTAX OCTET STRING
ACCESS read-only
STATUS mandatory
DESCRIPTION “Internal Sensor Label”
::= { int-labels 1 }
external-relay-labels1 OBJECT-TYPE
SYNTAX OCTET STRING
ACCESS read-only
STATUS mandatory
DESCRIPTION “External Relay 1 Label”
::= { external-relay-labels 1 }
END
