Hi,
In have configured Librenms to log syslog from remote servers.

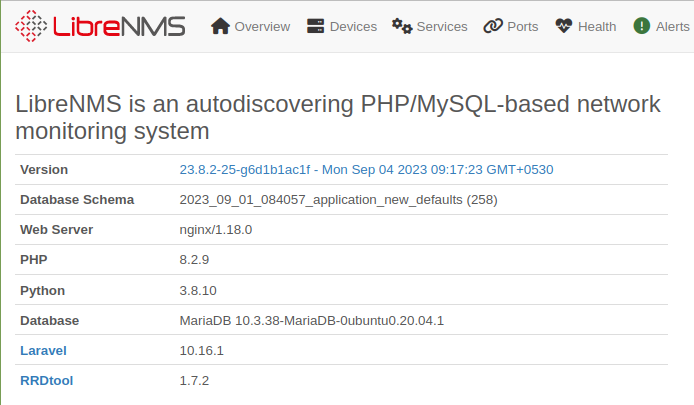

The versions used are as shown in the image below.
The syslog for the remote device is empty
The validate ./validate.php output is provided below:
librenms@test-basil-test:~$ ./validate.php
===========================================
Component | Version
--------- | -------
LibreNMS | 23.8.2-25-g6d1b1ac1f (2023-09-04T03:47:23+00:00)
DB Schema | 2023_09_01_084057_application_new_defaults (258)
PHP | 8.2.9
Python | 3.8.10
Database | MariaDB 10.3.38-MariaDB-0ubuntu0.20.04.1
RRDTool | 1.7.2
SNMP | 5.8
===========================================
[OK] Composer Version: 2.5.8
[OK] Dependencies up-to-date.
[OK] Database connection successful
[OK] Database Schema is current
[OK] SQL Server meets minimum requirements
[OK] lower_case_table_names is enabled
[OK] MySQL engine is optimal
[OK] Database and column collations are correct
[OK] Database schema correct
[OK] MySQl and PHP time match
[OK] Active pollers found
[OK] Dispatcher Service not detected
[OK] Locks are functional
[OK] Redis is unavailable
[OK] rrd_dir is writable
[OK] rrdtool version ok
The /opt/librenms/syslog.php code is given below:
#!/usr/bin/env php
<?php
/**
* LibreNMS
*
* This file is part of LibreNMS.
*
* @copyright (C) 2006 - 2012 Adam Armstrong
*/
$init_modules = [];
require __DIR__ . '/includes/init.php';
$s = fopen('php://stdin', 'r');
while ($line = fgets($s)) {
//logfile($line);
[$entry['host'],$entry['facility'],$entry['priority'], $entry['level'], $entry['tag'], $entry['timestamp'], $entry['msg'], $entry['program']] = explode('||', trim($line));
process_syslog($entry, 1);
unset($entry);
unset($line);
}
The code in /opt/librenms/config.php is given below:
<?php
## Have a look in misc/config_definitions.json for examples of settings you can set here. DO NOT EDIT misc/config_definitions.json!
// This is the user LibreNMS will run as
//Please ensure this user is created and has the correct permissions to your install
$config['user'] = 'librenms';
### This should *only* be set if you want to *force* a particular hostname/port
### It will prevent the web interface being usable form any other hostname
#$config['base_url'] = "/";
### Enable this to use rrdcached. Be sure rrd_dir is within the rrdcached dir
### and that your web server has permission to talk to rrdcached.
#$config['rrdcached'] = "unix:/var/run/rrdcached.sock";
### Default community
#$config['snmp']['community'] = array('public');
### Authentication Model
#$config['auth_mechanism'] = "mysql"; # default, other options: ldap, http-auth
#$config['http_auth_guest'] = "guest"; # remember to configure this user if you use http-auth
### List of RFC1918 networks to allow scanning-based discovery
#$config['nets'][] = "10.0.0.0/8";
#$config['nets'][] = "172.16.0.0/12";
#$config['nets'][] = "192.168.0.0/16";
# Uncomment the next line to disable daily updates
#$config['update'] = 0;
# Number in days of how long to keep old rrd files. 0 disables this feature
$config['rrd_purge'] = 0;
# Uncomment to submit callback stats via proxy
#$config['callback_proxy'] = "hostname:port";
# Set default port association mode for new devices (default: ifIndex)
#$config['default_port_association_mode'] = 'ifIndex';
# Enable the in-built billing extension
#$config['enable_billing'] = 1;
# Enable the in-built services support (Nagios plugins)
$config['show_services'] = 1;
$config['enable_syslog'] = 1;
$config['syslog_purge'] = 30;
I’m using rsyslog configuration and the code is as below:
# /etc/rsyslog.conf configuration file for rsyslog
#
# For more information install rsyslog-doc and see
# /usr/share/doc/rsyslog-doc/html/configuration/index.html
#
# Default logging rules can be found in /etc/rsyslog.d/50-default.conf
#################
#### MODULES ####
#################
module(load="imuxsock") # provides support for local system logging
#module(load="immark") # provides --MARK-- message capability
# provides UDP syslog reception
module(load="imudp")
input(type="imudp" port="514")
# provides TCP syslog reception
module(load="imtcp")
input(type="imtcp" port="514")
# provides kernel logging support and enable non-kernel klog messages
module(load="imklog" permitnonkernelfacility="on")
$template RemInputLogs, "/var/log/remotelogs/%FROMHOST-IP%/%PROGRAMNAME%.log"
*.* ?RemInputLogs
###########################
#### GLOBAL DIRECTIVES ####
###########################
#
# Use traditional timestamp format.
# To enable high precision timestamps, comment out the following line.
#
$ActionFileDefaultTemplate RSYSLOG_TraditionalFileFormat
# Filter duplicated messages
$RepeatedMsgReduction on
#
# Set the default permissions for all log files.
#
$FileOwner syslog
$FileGroup adm
$FileCreateMode 0640
$DirCreateMode 0755
$Umask 0022
$PrivDropToUser syslog
$PrivDropToGroup syslog
#
# Where to place spool and state files
#
$WorkDirectory /var/spool/rsyslog
#
# Include all config files in /etc/rsyslog.d/
#
$IncludeConfig /etc/rsyslog.d/*.conf
Please help to resolve the issue.
Awaiting response.
