Hello,

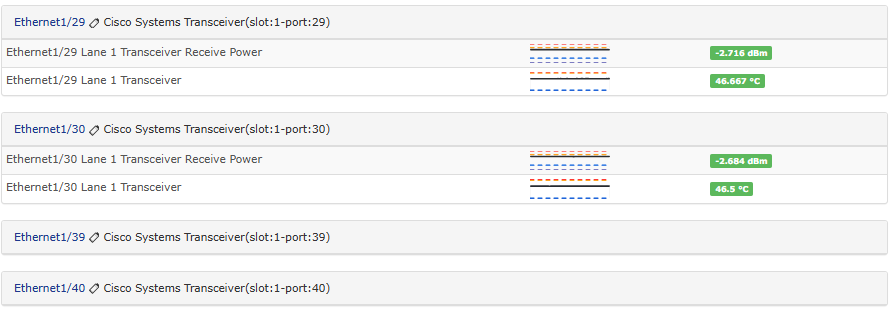

I have some Nexus N9K-C93180YC-EX switches where I enabled graph on transceivers but not all the interfaces graphs the tx/rx power.

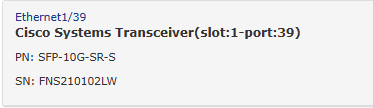

I have checked that it recognizes the transceiver model and SN, but the graphs are empty.
Other ports with the same type os transceirver are graphing without any issue so it doesn look to be related to transceiver type.
Is there any limitation?
I have updated to the latest version, this is the validate.php output.
===========================================
| Component | Version |
|---|---|
| LibreNMS | 25.8.0-dev.17+dee86e791 (2025-07-28T17:16:27+02:00) |
| DB Schema | 2025_07_29_025425_hr_device_table_add_type_default (353) |
| PHP | 8.2.25 |
| Python | 3.9.21 |
| Database | MariaDB 10.5.22-MariaDB |
| RRDTool | 1.7.2 |
| SNMP | 5.9.1 |
| =========================================== |
[OK] Composer Version: 2.8.10
[OK] Dependencies up-to-date.
[OK] Database Connected
[OK] Database Schema is current
[OK] SQL Server meets minimum requirements
[OK] lower_case_table_names is enabled
[OK] MySQL engine is optimal
[OK] Database and column collations are correct
[OK] Database schema correct
[OK] MySQL and PHP time match
[OK] Active pollers found
[OK] Dispatcher Service not detected
[OK] Locks are functional
[OK] Python poller wrapper is polling
[OK] Redis is unavailable
[OK] rrdtool version ok
[OK] Connected to rrdcached
[WARN] Your local git contains modified files, this could prevent automatic updates.
[FIX]:
You can fix this with ./scripts/github-remove
Modified Files:
bootstrap/cache/.gitignore
dist/rrdcached/rrdcached.service
logs/.gitignore
rrd/.gitignore
storage/app/.gitignore
storage/app/private/.gitignore
storage/app/public/.gitignore
storage/debugbar/.gitignore
storage/framework/cache/.gitignore
storage/framework/cache/data/.gitignore
storage/framework/sessions/.gitignore
storage/framework/testing/.gitignore
storage/framework/views/.gitignore
storage/logs/.gitignore
[librenms@czllogs ~]$
